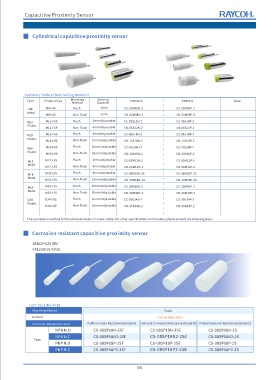

Page 9 - RAYCOH Proximity Sensor 2025V1.0

Capacitive Proximity Sensor

Cylindrical capacitive proximity sensor

Summary Table of Best-Selling Models 5
Type Product Size Mounting Sensing NPN N.O PNP N.O Note
Method Distance
M8 M8×45 Flush 1mm CS-01M08N-2 CS-01M08P-2
Metal
M8×45 Non-Flush 2mm CN-02M08N-2 CN-02M08P-2
M12 M12×59 Flush 3mm Adjustable CS-03S12N-2 CS-03S12P-2
Plastic 6mm Adjustable
M12×59 Non-Flush CN-06S12N-2 CN-06S12P-2
M18 M18×80 Flush 8mm Adjustable CS-08S18N-2 CS-08S18P-2
Plastic
M18×80 Non-Flush 15mm Adjustable CN-15S18N-2 CN-15S18P-2
M30 M30×80 Flush 20mm Adjustable CS-20S30N-2 CS-20S30P-2
Plastic
M30×80 Non-Flush 30mm Adjustable CN-30S30N-2 CN-30S30P-2
M12 M12×59 Flush 3mm Adjustable CS-03M12N-2 CS-03M12P-2
Metal
M12×59 Non-Flush 6mm Adjustable CN-06M12N-2 CN-06M12P-2
M18 M18×55 Flush 8mm Adjustable CS-08M18N-2S CS-08M18P-2S
Metal
M18×55 Non-Flush 15mm Adjustable CN-15M18N-2S CN-15M18P-2S
M30×55 Flush 20mm Adjustable CS-20M30N-2 CS-20M30P-2
M30
Metal
M30×55 Non-Flush 30mm Adjustable CN-30M30N-2 CN-30M30P-2
D34 D34×82 Flush 25mm Adjustable CS-25K34N-2 CS-25K34P-2
Plastic
D34×82 Non-Flush 35mm Adjustable CN-35K34N-2 CN-35K34P-2

The connection method for the above models is: 2-meter cable. For other specifications and models, please consult the sales engineer.

Corrosion resistant capacitive proximity sensor

SPECIFICATION
SP12/SP18/SP30

HOT-SELLING SP18
Mounting Method Flush
Sn[mm] 2-8mm Adjustable
Corrosion Resistance Level Full Corrosion Resistance (Grade A) General Corrosion Resistance (Grade B) Probe Corrosion Resistance (Grade C)
NPN N.O CS-08SP18N-2SF CS-08SP18N-2SE CS-08SP18N-2S
NPN N.C CS-08SP18N2-2SF CS-08SP18N2-2SE CS-08SP18N2-2S
Type
PNP N.O CS-08SP18P-2SF CS-08SP18P-2SE CS-08SP18P-2S
PNP N.C CS-08SP18P2-2SF CS-08SP18P2-2SE CS-08SP18P2-2S

06
