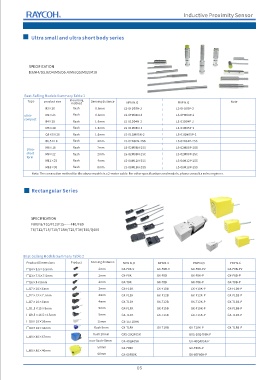

Page 6 - RAYCOH Proximity Sensor 2025V1.0

Inductive Proximity Sensor

Ultra small and ultra short body series

SPECIFICATION
D3/M4/D3.8/D4/M5/D5.4/M6/Q5/M12/M18

Best-Selling Models Summary Table 1
Type product size mounting Sensing distance Note
method NPN N.O PNP N.O
Φ3×26 flush 0.6mm LS-0FD03N-2 LS-0FD03P-2
ultra- M4×25 flush 0.6mm LS-0FM04N-2 LS-0FM04P-2
compact
Φ4×25 flush 1.0mm LS-01D04N-2 LS-01D04P-2
M5×28 flush 1.0mm LS-01M05N-2 LS-01M05P-2
Q5×5×26 flush 1.0mm LS-01QM05N-2 LS-01QM05P-2
Φ6.5×18 flush 2mm LS-02D6EN-2SS LS-02D6EP-2SS
M8×18 flush 2mm LS-02M08N-2SS LS-02M08P-2SS
Ultra-
short M8×22 flush 2mm LS-02M08N-2SC LS-02M08P-2SC
form
M12×23 flush 4mm LS-04M12N-2SS LS-04M12P-2SS
M18×30 flush 8mm LS-08M18N-2SS LS-08M18P-2SS
Note: The connection method for the above models is a 2-meter cable. For other specifications and models, please consult a sales engineer.

Rectangular Series

SPECIFICATION
F8V/F8/F10/F12/F15……F40/F80
T8/T12/T15/T18/T18H/T25/T30/T40/Q40S

Best-Selling Models Summary Table 2
Product Dimensions Product Sensing distance NPN N.O NPN N.C PNP N.O PNP N.C
□24×8.5×5.5mm 2mm GX-F8K-V GX-F8B-V GX-F8K-PV GX-F8B-PV
□23×7.5×7.5mm 2mm GX-F8K GX-F8B GX-F8K-P GX-F8B-P
□26×8×8mm 2mm GX-T8K GX-T8B GX-T8K-P GX-T8B-P
□27×10×6mm 3mm GX-F10K GX-F10B GX-F10K-P GX-F10B-P
□27×12×7.1mm 4mm GX-F12K GX-F12B GX-F12K-P GX-F12B-P
□27×10×6mm 4mm GX-T12K GX-T12B GX-T12K-P GX-T12B-P
□31.5×15×8mm 5mm GX-F15K GX-F15B GX-F15K-P GX-F15B-P
□29.5×16.5×15mm 5mm GX-T15K GX-T15B GX-T15K-P GX-T15B-P
□18×18×36mm 15mm GX-15T18HK
□18×18×34mm flush 5mm GX-T18K GX-T18B GX-T18K-P GX-T18B-P
flush 20mm GXS-20Q40SK GXS-20Q40SK-P
□40×40×67mm
non-flush 40mm GX-40Q40SK GX-40Q40SK-P
50mm GX-F80K GX-F80K-P
□80×80×40mm
60mm GX-60F80K GX-60F80K-P

03
