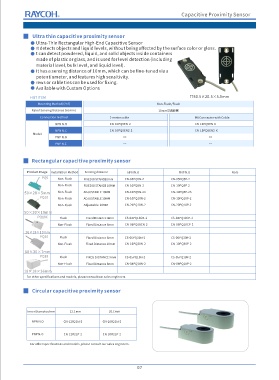

Page 10 - RAYCOH Proximity Sensor 2025V1.0

Capacitive Proximity Sensor

Ultra thin capacitive proximity sensor
Ultra-Thin Rectangular High-End Capacitive Sensor
It detects objects and liquid levels, without being affected by the surface color or gloss.
t can detect powdered, liquid, and solid objects inside containers
made of plastic or glass, and is used for level detection (including
material level, bulk level, and liquid level).
It has a sensing distance of 10mm, which can be fine-tuned via a
potentiometer, and features high sensitivity.
rews or cable ties can be used for fixing.
Available with Custom Options

HOT ITEM □50.5×20.5×5.5mm
Mounting Method[f/nf] Non-Flush/Flush
Rated Sensing Distance Sn[mm] 10mm可调距离
Connection method 2-meter cable M8 Connector with Cable
NPN N.O CN-10PQ5EN-2 CN-10PQ5EN-K
NPN N.C CN-10PQ5EN2-2 CN-10PQ5EN2-K
Model
PNP N.O == ==
PNP N.C == ==

Rectangular capacitive proximity sensor

Product Image Installation Method Sensing distance NPN N.O PNP N.O Note
PQ5 Non-Flush FIXED DISTANCE5mm CN-05PQ5N-2 CN-05PQ5P-2
Non-Flush FIXED DISTANCE 10MM CN-10PQ5N-2 CN-10PQ5P-2
50×20×5mm Non-Flush ADJUSTABLE 10MM CN-10PQ5N-2A CN-10PQ5P-2A
PQ10 Non-Flush ADJUSTABLE 10MM CN-10PQ10N-2 CN-10PQ10P-2
Non-Flush Adjustable 20MM CN-20PQ10N-2 CN-20PQ10P-2
50×20×10mm
PQ18C Flush Fixed Distance 4mm CS-04PQ18CN-2 CS-04PQ18CP-2
Non-Flush Fixed Distance 6mm CN-06PQ18CN-2 CN-06PQ18CP-2
26×18×10mm
PQ30 Flush Fixed Distance 6mm CS-06PQ30N-2 CS-06PQ30P-2
Non-Flush Fixed Distance 10mm CN-10PQ30N-2 CN-10PQ30P-2
50×30×7mm
PQ18 Flush FIXED DISTANCE 5mm CS-05PQ18N-2 CS-05PQ18P-2
Non-Flush Fixed Distance 8mm CN-08PQ18N-2 CN-08PQ18P-2
18×18×36mm
For other specifications and models, please consult our sales engineers.

Circular capacitive proximity sensor

Inner Diameter/mm 12.1mm 20.1mm

NPN N.O CN-12R21N-2 CN-20R21N-2

PNP N.O CN-12R21P-2 CN-20R21P-2

For other specifications and models, please consult our sales engineers.

07
