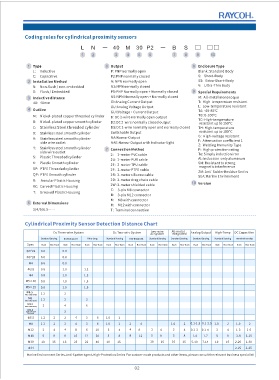

Page 5 - RAYCOH Proximity Sensor 2025V1.0

Coding rules for cylindrical proximity sensors

L N 40 M 30 P2 B S
1 2 3 4 5 6 7 8 9 10

1 Type 6 Output 8 Enclosure Type
L: Inductive P: PNP normally open Blank: Standard Body
C: Capacitive P2:PNP normally closed S: Short-Body
2 Installation Method N: NPN normally open SS: Extra-Short-Body
N: Non-flush / non-embedded N2:NPN normally closed V: Ultra-Thin Body
S: Flush / Embedded PS:PNP Normally open + Normally closed 9 Special Requirements
3 Inductive distance NS:NPN Normally open + Normally closed M: All-metal monocoque
40: 40mm GI:Analog Current Output T: High-temperature resistant
GU:Analog Voltage Output L: Low-temperature resistant
4 Outline TA: -40-85℃
GUI:Voltage + Current Output
M: Nickel-plated copper threaded cylinder D: DC 2-wire normally open output TB: 0-100℃
B: Nickel-plated copper smooth cylinder D2:DC 2-wire normally closed output TC: High-temperature
resistant up to 150°C
C: Stainless Steel threaded cylinder DS:DC 2-wire normally open and normally closed TH: High-temperature
D: Stainless steel smooth cylinder Switchable Output resistant up to 180°C
H: Stainless steel smooth cylinder NA:Namur Output G: High-voltage resistant
F: Attenuation coefficient 1
side wire outlet NAE:Namur Output with indicator light
Z: Welding Immunity Type
Y: Stainless steel smooth cylinder 7 Connection Method P: High protection rating
side wire outlet Te: Simply induction iron
S: Plastic Threaded cylinder 2: 2-meter PVC cable Al: Induction-only aluminum
2U: 2-meter PUR cable
K: Plastic Smooth cylinder SM: Resistant to strong
2E: 2-meter TPU cable
SP: PTFE Threaded cylinder 2F: 2-meter PTFE cable magnetic interference
ZM: Anti-Solder Residue Series
QP: PTFE Smooth cylinder 2R: 2-meter silicone cable SEA:Marine Environment
R: Annular Plastic Housing 2D: 2-meter drag chain cable
2W: 2-meter shielded cable 10 Version
RC: Curved Plastic Housing
C: 3-pin M8 connector
T: Grooved Plastic Housing
B: 3-pin M12 connector
K: M8 with connector
5 External Dimensions
H: M12 with connector
3/4/5/6.5…… T: Terminal connection
Cylindrical Proximity Sensor Detection Distance Chart
Dc Three-wire System Dc Two-wire System Two-wire All-metal Analog Output High-Temp DC Capacitive
Ac system
Integrated
Standard Sensing Dist-Enhanced Ultra-Long Standard Sensing Dist-Enhanced Standard Sensing Standard Sensing Standard Sensing Standard Sensing Standard Sensing
Spec flush Non-flush flush Non-flush flush Non-flush flush Non-flush flush Non-flush flush Non-flush flush Non-flush flush Non-flush flush Non-flush flush Non-flush
Φ3*22 0.6 0.8
Φ3*26 0.6 0.8
M4 0.6 0.8
Φ3.8 0.8 1.0 1.2
Φ4 0.8 1.0 1.5
M5×28 0.8 1.0 1.5
M5×25 0.8 1.0 1.5
Φ6.5
Ultra-Short Body 1.2 2
M8
Ultra-Short Body 1.2 2 3
M12
Ultra-Short Body 2 4 6
M14
High-pressure 3
Resistant
Φ6.5 1.2 2 2 4 3 6 1.0 2
M8 1.2 2 2 4 3 6 1.0 2 2 4 1.0 2 0.1-1.5 0.1-2.5 1.0 2 1.0 2
M12 2 4 4 8 6 10 2 4 4 8 2 4 2 4 0.1-3 0.1-4 2 4 1-3 1-6
M18 5 8 8 16 12 20 5 8 8 12 5 8 5 8 1-4 1-7 5 8 2-8 2-15
M30 10 15 16 25 22 40 10 15 10 15 10 15 5-10 7-14 10 15 2-20 2-30
Φ34 2-25 2-35
Marine Environment Series、Anti-Spatter Agent、High-Protection Serie‘s For custom-made products and other items, please consult the relevant business specialist!
