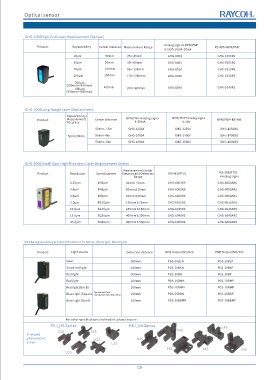

Page 11 - RAYCOH Proximity Sensor 2025V1.0

Optical sensor

GHG-1000High-End Laser Displacement (Sensor)

Analog signal+NPN/PNP
Product Repeatability Center distance Measurement Range RS-485+NPN/PNP
0-5V/0-10V/4-20mA
10μm 30mm 25∽35mm GHG-1003 GHG-1003RS
30μm 50mm 35∽65mm GHG-1005 GHG-1005RS
70μm 100mm 65∽135mm GHG-1010 GHG-1010RS
200μm 200mm 120∽280mm GHG-1020 GHG-1020RS
300μm
(200mm∽400mm)
800μm 400mm 200∽600mm GHG-1040 GHG-1040RS
(400mm∽600mm)

GHG-1000Long-Range Laser Displacement
Repeatability/
Product Measurement Center distance NPN/PNP+Analog signa NPN/PNP+Analog signa NPN/PNP+RS-485
Accuracy 4-20mA 0-10V
50mm-2.5m GHG-1250A GHG-1250V GHG-1250RS
5mm/30mm 50mm-4m GHG-1400A GHG-1400V GHG-1400RS
50mm-10m GHG-1000A GHG-1000V GHG-1000RS

GHG-6000 Small Spot High-Precision Laser Displacement Sensor
Measurement Center
Product Resolution Spot diameter Distance and Detection RS-485(RTU) RS-485(RTU)
Range +Analog signa
0.25μm Φ35μm 30mm±5mm GHG-6003RS GHG-6003ARS
0.4μm Φ45μm 50mm±10mm GHG-6005RS GHG-6005ARS
0.8μm Φ60μm 85mm±20mm GHG-6008RS GHG-6008ARS
2.0μm Φ120μm 150mm±75mm GHG-6015RS GHG-6015ARS
10.0μm Φ180μm 250mm±150mm GHG-6025RS GHG-6025ARS
15.0μm Φ250μm 400mm±200mm GHG-6040RS GHG-6040ARS
45.0μm Φ450μm 800mm±500mm GHG-6080RS GHG-6080ARS

PDS Background Suppression Photoelectric Sensor (Red Light, Blue Light)

Product Light source Detection distance NPN Outpu（t NC/NO） PNP Outpu（t NO/NC）
laser 300mm PDS-30BLN PDS-30BLP
Small red light 100mm PDS-10BXN PDS-10BXP
Red light 300mm PDS-30BN PDS-30BP
Red light 100mm PDS-10BMN PDS-10BMP
Red light (Bar B) 100mm PDS-10BWN PDS-10BWP
Transparent Film/
Blue Light (Square) Transparent Glass Inspection 250mm PDS-25BBN PDS-25BBP
Blue Light (Bar A) 100mm PDS-10BBMN PDS-10BBMP

For other specifications and models, please inquire.
PE-□25 Series PE-□45 Series L45
F25 R25 T45
U-shaped
photoelectric K25 R45
sensor L25
F45 K45 Y45
U25
