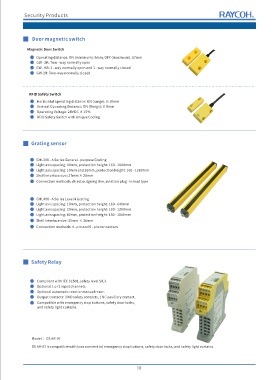

Page 13 - RAYCOH Proximity Sensor 2025V1.0
P. 13
Security Products
Door magnetic switch
Magnetic Door Switch
Operating distance: ON (minimum): 8mm, OFF (maximum): 17mm
GW - 2K: Two - way normally open
GW - KB: 1 - way normally open and 1 - way normally closed
GW-2B: Two-way normally closed
RFID Safety Switch
Horizontal operating distance: ON (range): 0-10mm
Vertical Operating Distance: ON (Range): 0-8mm
Operating Voltage: 24V DC ± 15%
RFID Safety Switch with Unique Coding
Grating sensor
GHL200 - A Series General - purpose Grating
Light axis spacing: 40mm, protection height: 160 - 1840mm
Light axis spacing: 10mm and 20mm, protection height: 160 - 1280mm
Shell interface size: 27mm × 28mm
Connection methods: direct outgoing line, aviation plug - in lead type
GHL400 - A Series Level 4 Grating
Light axis spacing: 10mm, protection height: 160 - 640mm
Light axis spacing: 20mm, protection height: 160 - 1280mm
Light axis spacing: 40mm, protection height: 160 - 1840mm
Shell interface size: 35mm × 38mm
Connection methods: 4 - pin and 6 - pin connectors
Safety Relay
Compliant with IEC 61508, safety level SIL3.
Optional 1 or 2 input channels.
Optional automatic reset or manual reset.
Output contacts: 3 NO safety contacts, 1 NC auxiliary contact.
Compatible with emergency stop buttons, safety door locks,
and safety light curtains.
Model ： GS AR-07
GS AR-07 is compatible with (can connect to) emergency stop buttons, safety door locks, and safety light curtains.
