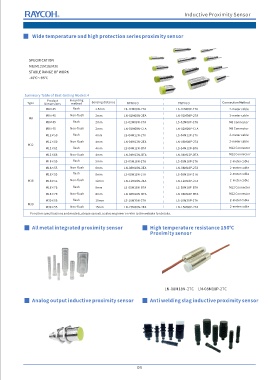

Page 8 - RAYCOH Proximity Sensor 2025V1.0

Inductive Proximity Sensor

Wide temperature and high protection series proximity sensor

SPECIFICATION
M8/M12/M18/M30
STABLE RANGE OF WORK
-40℃〜85℃

Summary Table of Best-Selling Models 4
Product mounting
Type Dimensions method Sensing distance NPN N.O PNP N.O Connection Method
M8×45 flush 1.5mm LS-1EM08N-2TA LS-1EM08P-2TA 2-meter cable
M8×45 Non-flush 2mm LN-02M08N-2TA LN-02M08P-2TA 2-meter cable
M8
M8×45 flush 2mm LS-02M08N-CTA LS-02M08P-CTA M8 Connector
M8×45 Non-flush 2mm LN-02M08N-CTA LN-02M08P-CTA M8 Connector
M12×50 flush 4mm LS-04M12N-2TA LS-04M12P-2TA 2-meter cable
M12×50 Non-flush 4mm LN-04M12N-2TA LN-06M08P-2TA 2-meter cable
M12
M12×62 flush 4mm LS-04M12N-BTA LS-04M12P-BTA M12 Connector
M12×68 Non-flush 4mm LN-04M12N-BTA LN-04M12P-BTA M12 Connector
M18×55 flush 5mm LS-05M18N-2TA LS-05M18P-2TA 2-meter cable
M18×55 Non-flush 8mm LN-08M18N-2TA LN-08M18P-2TA 2-meter cable
M18×55 flush 8mm LS-08M18N-2TA LS-08M18P-2TA 2-meter cable
M18 M18×55 Non-flush 12mm LN-12M18N-2TA LN-12M18P-2TA 2-meter cable
M18×75 flush 8mm LS-05M18N-BTA LS-05M18P-BTA M12 Connector
M18×79 Non-flush 8mm LN-08M18N-BTA LN-08M18P-BTA M12 Connector
M30×55 flush 10mm LS-10M30N-2TA LS-10M30P-2TA 2-meter cable
M30
M30×55 Non-flush 15mm LN-15M30N-2TA LN-15M30P-2TA 2-meter cable
For other specifications and models, please consult a sales engineer or refer to the website for details.

All metal integrated proximity sensor High temperature resistance 150℃
Proximity sensor

LN-08M18N-2TC LN-08M18P-2TC

Analog output inductive proximity sensor Anti welding slag inductive proximity sensor

05
