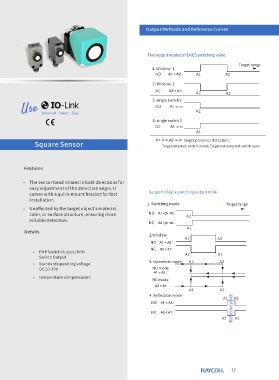

Page 79 - RAYCOH_2026ENV3.0_Sensors

Output Methods and Reference Curves

Five output modes of E4/E5 switching value

Target range
1. Window 1
NO A11 A2
A
2. Window 2
NC
A2 A1
3. single switch 1
NO
A2

4. single switch 2
NC
A1

target presence detection;
Square Sensor Target detected: switch closed; Target not detected: switch open

Features

Ÿ The sensor head rotates in both directions for
easy adjustment of the detection angle. It
Support IO-Link switching output mole
comes with a quick-mount bracket for fast
installation.
1. Switching mode Target range
Ÿ Unaffected by the target object's material,
color, or surface structure, ensuring more NO A2
reliable detection.
NC
A1
Details
2.Window
A1 A2
NO
NC
Ÿ PNP Switch Output/NPN
Switch Output A2 A1
3. hysteresis mode A1 A2
Ÿ Standard operating voltage
DC 10-30V NO mode
Ÿ temperature compensation
NC mode
A2 A1
4. Reflection mode
A1 A2
NO
NC Reflector plate
A2 A1
