P. 69
Characteristic Reference Curve and Output Method
Analog output mode
A1 A2
up mode
A1<A2:
Target range
down mode
A2<A1:
A2 A1

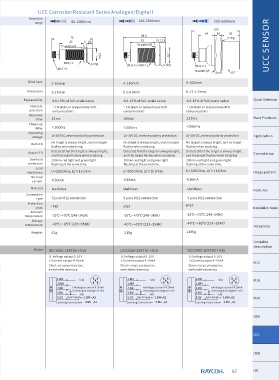

UCC series
Features
Ÿ Stainless steel design seals o-ring to housing
Ÿ Suitable for various corrosive environments
Details
Ÿ Support RS485 modbus-rtu output
Ÿ Analogue voltage output 0-10V or analogue
current output 4-20mA
Ÿ Detection distance learning function via grey
line
Ÿ Standard operating voltage DC 10-30V flat100×100mm round rod Ø 25mm
Ÿ temperature compensation
Y（m)
X（m)
flat100×100mm round rod Ø 25mm
