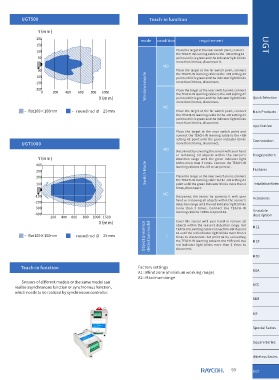

UGT500 Teach-in function

mode condition requirement UGT

Place the target at the near switch point,connect
the TEACH-IN learning cable to the -UB setting A1
point until it is green and the indicator light blinks
more than 3 times, disconnect it.
NO
Place the target at the far switch point, connect
Windows mode more than 3 times, disconnect.
the TEACH-IN learning cable to the +UB setting A2
point until it is green and the indicator light blinks

Place the target at the near switch point, connect
the TEACH-IN learning cable to the +UB setting A2
point until it is green and the indicator light blinks
more than 3 times, disconnect. Quick Selection
NC
flat100×100mm round rod Ø 25mm Place the target at the far switch point, connect Main Products
the TEACH-IN learning cable to the -UB setting A1
point until it is green and the indicator light blinks
more than 3 times, disconnect.
Application
Place the target at the near switch point and
connect the TEACH-IN learning cable to the +UB
setting A2 point until the green indicator blinks Connotation
UGT1000 more than 3 times, disconnect.
NO
Disconnect by covering the sensor with your hand
or removing all objects within the sensor's Usage pattern
detection range until the green indicator light
Switch Mode learning cable to the -UB to set point A1. Features
blinks more than 3 times. Connect the TEACH-IN
Place the target at the near switch point, connect
the TEACH-IN learning cable to the -UB setting A1
point until the green indicator blinks more than 3
times, disconnect. Installation Notes
NC
Disconnect the sensor by covering it with your Accessores
hand or removing all objects within the sensor's
detection range until the red indicator light blinks
more than 3 times. Connect the TEACH-IN
learning cable to +UB to set point A2. Unstable
description
Cover the sensor with your hand or remove all
objects within the sensor's detection range. Set
A1 until the red indicator light blinks more than 3
flat100×100mm round rod Ø 25mm Object presence detection model TEACH-IN Learning Cable Connection-UB to point M12
times to disconnect. Set point A2 by connecting
the TEACH-IN learning cable to the +UB until the
M18
red indicator light blinks more than 3 times to
disconnect.
M30
Teach-in function Factory settings
A1 : Blind zone (minimum working range) UDA
A2 : Maximum range
Sensors of different models or the same model can
realize asynchronous function or synchronous function, UCC
which needs to be realized by synchronous controller.
UDB
