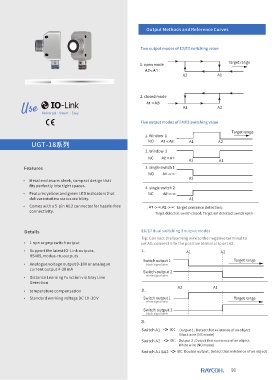

Page 93 - RAYCOH_2026ENV3.0_Sensors

Output Methods and Reference Curves

Two output modes of E2/E3 switching value

Target range
1. open mode
A2 A1

2. closed mode

A1 A2

Five output modes of E4/E5 switching value
Target range
1. Window 1
NO A A2
A11
UGT-18系列
2. Window 2
NC
A2 A1
Features 3. single switch 1
NO
A2
Ÿ Metal enclosure: sleek, compact design that
fits perfectly into tight spaces.
4. single switch 2
Ÿ Features yellow and green LED indicators that NC
deliver intuitive status visibility. A1
Ÿ Comes with a 5-pin M12 connector for hassle-free target presence detection;
connectivity.
Target detected: switch closed; Target not detected: switch open

Details E6/E7 dual switching 3 output modes
Tip: Connect the learning wire to the negative terminal to
Ÿ 1 npn or pnp switch output set A1; connect it to the positive terminal to set A2.
Ÿ Support the latest IO-Link outputs, 1. A1 A2
RS485,modus-rtu outputs
Switch output 1 Target range
Ÿ Analogue voltage output 0-10V or analogue black signal wire
current output 4-20 mA
Switch output 2
Ÿ Distance Learning Function via Gray Line white signal wire
Detection
A2 A1
Ÿ temperature compensation
Ÿ Standard working voltage DC 10 -30 V Switch output 1 Target range
white signal wire
Switch output 2
black signal wire

Switch A1 Output 1 ; Detect that existence of an object.
Black wire (NC mode)
Switch A2 Output 2 ; Detect that existence of an object.
White wire (NO mode)
Switch A1 &A2 Double output; Detect that existence of an object
