Page 37 - RAYCOH_2026ENV3.0_Sensors

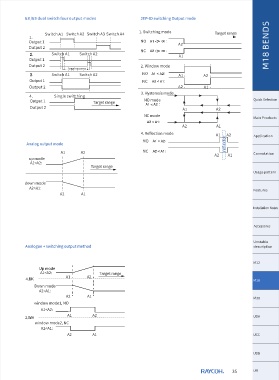

Output Methods and Reference Curves

Two output modes of E2/E3 switching value

Target range
1. open mode
A2 A1

2. closed mode

A1 A2

Five output modes of E4/E5 switching value
Target range
1. Window 1
NO A11 A2
A
M18 CYLINDRICAL BENDS
2. Window 2
NC
A2 A1
Features 3. single switch 1
Ÿ M18 Mounting Thread Sleeve NO
A2
Ÿ Variant With 90° Angled Head
4. single switch 2
NC
A1
Details
target presence detection;
Ÿ 1 npn or pnp switch output
Target detected: switch closed; Target not detected: switch open
Ÿ 2 npn or pnp switch outputs
Ÿ Analogue voltage output 0-10V or analogue
current output 4-20mA E6/E7 dual switching 3 output modes

Ÿ Latest IO-Link outputs, RS485 modbus-rtu outputs Tip: Connect the learning wire to the negative terminal to
Ÿ Detection distance learning function via grey line set A1; connect it to the positive terminal to set A2.
Ÿ Standard working voltage DC 10-30 V 1. A1 A2
Ÿ Temperature compensation
Switch output 1 Target range
black signal wire
Switch output 2
white signal wire

A2 A1

Switch output 1 Target range
white signal wire
Switch output 2
black signal wire

Switch A1 Output 1 ; Detect that existence of an object.
Black wire (NC mode)
Switch A2 Output 2 ; Detect that existence of an object.
White wire (NO mode)
Switch A1 &A2 Double output; Detect that existence of an object
